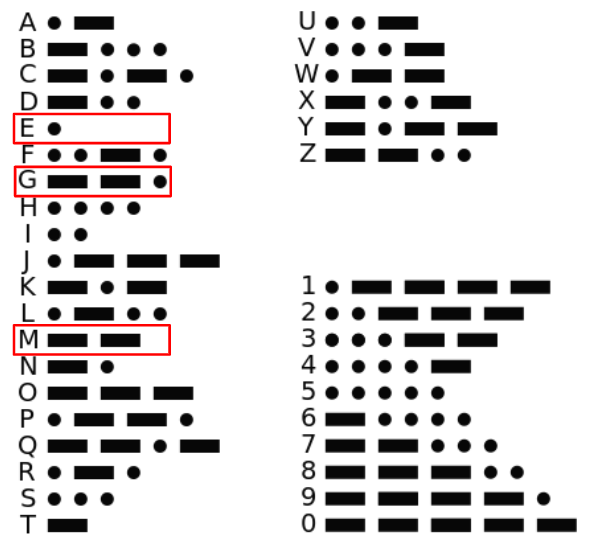

> For the complete documentation index, see [llms.txt](https://cs61b-2.gitbook.io/cs61b-textbook-2025/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://cs61b-2.gitbook.io/cs61b-textbook-2025/38.-compression-and-complexity/38.2-prefix-free-codes.md). # 38.2 Prefix-free Codes Consider the representation of English text in Java. We represent text as a sequence of characters, each taking 8 bits of memory. One easy way to compress, then, is to simply use less than 8 bits per character. To do this, we have to decide which **codewords** (bit sequences) go with each **symbol** (character). ## Mapping Alphanumeric Symbols ### Morse Code As an introductory example, consider the Morse code alphabet. Looking at the alphabet below, what does the sequence – – • – – • represent? It’s ambiguous! The same sequence of symbols can represent either MEME, or GG, depending on what you choose – – • to represent

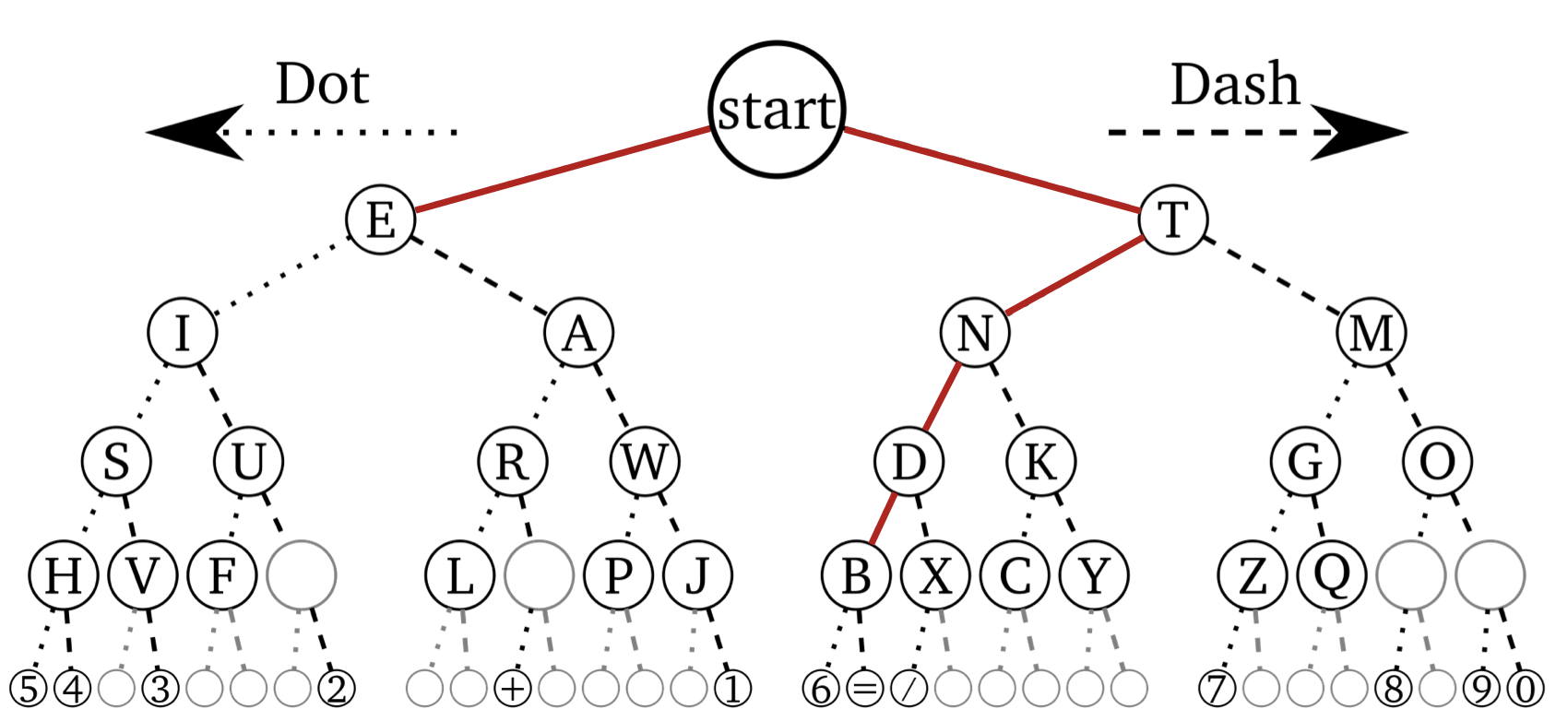

In real usage, operators must pause between codewords to indicate a break. The pause acts as an implicit third symbol, but we can't encode this real-time information into our code. ### Prefix-free Codes An alternate strategy to avoid the need for real-time is to use **prefix-free codes**. In a prefix-free code, no codeword is a prefix of any other. In the Morse Code example, there would be no confusion whether the – – in the pattern – – • – – • is supposed to represent M, or the start of G. Let's represent Morse code as a tree of codewords leading to symbols. As we can see from the tree, several symbols have representations that are prefixes of other symbols.

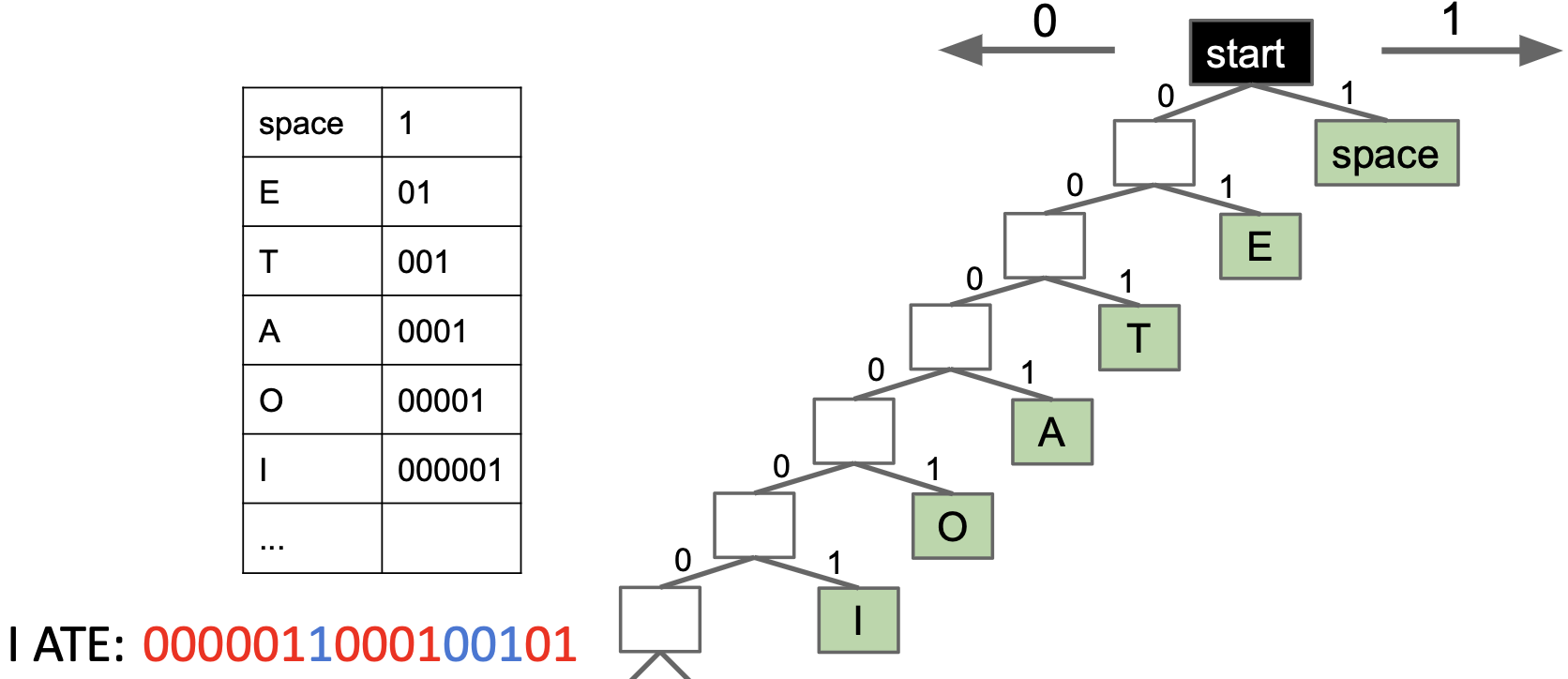

As an example of an (arbitrary) prefix-free code, consider the following encoding:

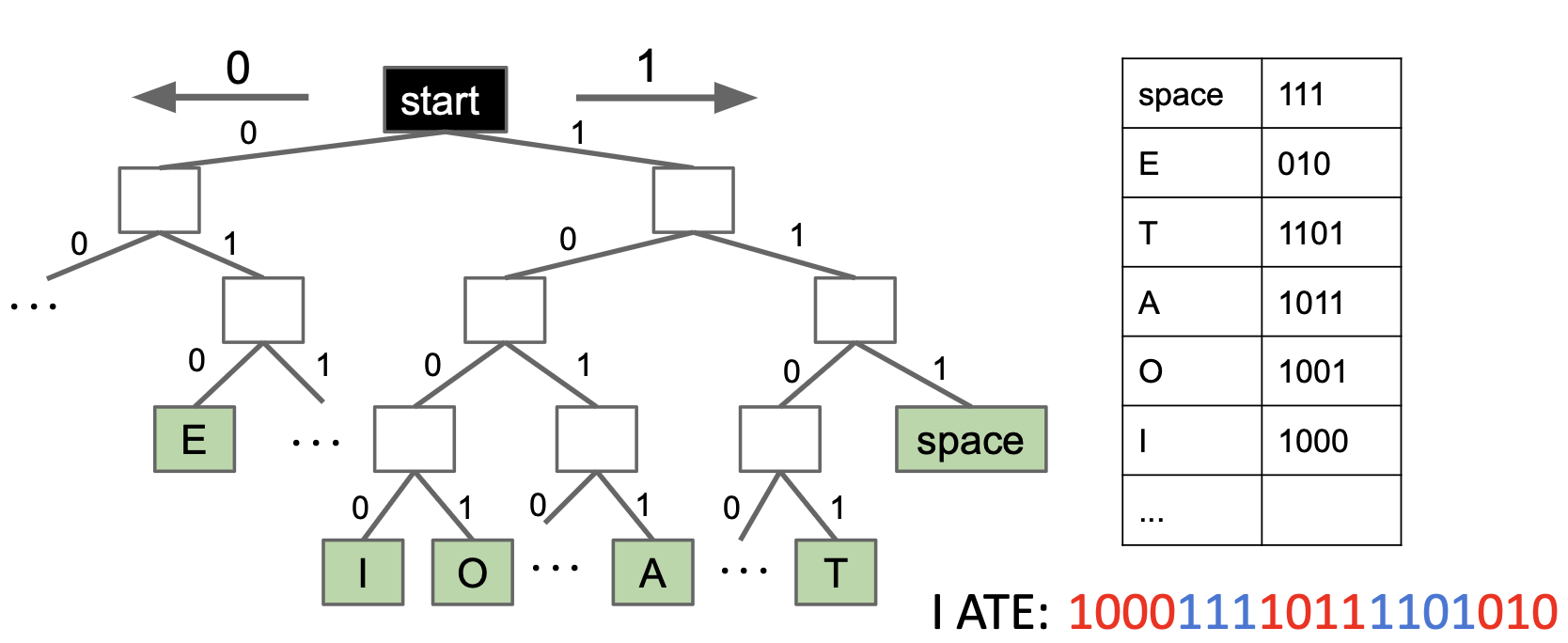

The following code is also prefix-free:

Note that some codes are more efficient for certain strings than others: in the first representation, `I ATE` uses less bits than the second code. However, this is highly dependent on what string we're trying to encode.
