# 29.4 Reductions and Decomposition

Recall in previous section that to solve one problem (longest paths), we created a new graph G' and fed it into a different algorithm and then interpreted the result.

<figure><img src="https://github.com/Berkeley-CS61B/fa25-gitbook/blob/main/.gitbook/assets/image%20(103).png" alt=""><figcaption></figcaption></figure>

This process is known as **reduction**. Since DAG-SPT can be used to solve DAG-LPT, we say that "DAG-LPT reduces to DAG-SPT."

In other words, the problem of DAG-LPT can be reduced to the problem of DAG-SPT.

A problem like DAG-LPT can potentially be reduced to multiple other problems. As a real-world analogy, consider climbing a hill. There are many ways we can solve the problem of "climbing a hill."

* "Climbing a hill" reduces to "riding a ski lift"
* "Climbing a hill" reduces to "being shot out of a cannon"
* "Climbing a hill" reduces to "riding a bike up the hill"

Formally, **if any subroutine for task Q can be used to solve P, we say P reduces to Q.**

This definition is visualized below:

<figure><img src="https://github.com/Berkeley-CS61B/fa25-gitbook/blob/main/.gitbook/assets/image%20(119).png" alt=""><figcaption></figcaption></figure>

Note that this is simply a generalization of the first graphic on this page. P reduces to Q since Q is used to solve P. This works by preprocessing the input �x into �y, running the algorithm Q on �y, and postprocessing the output into a solution for P. This is what we did for reducing DAG-LPT to DAG-SPT.

#### Example <a href="#example" id="example"></a>

Here we'll show how one problem can reduce to a seemingly unrelated different problem. First, the two problems:

**Independent Set Problem**

An independent set is a set of vertices in which no two vertices are adjacent.

The Independent Set Problem: Does there exist an independent set of size k? In other words, can we color k vertices red, such that none touch?

<figure><img src="https://github.com/Berkeley-CS61B/fa25-gitbook/blob/main/.gitbook/assets/image%20(16).png" alt=""><figcaption><p>Example of independent sets solutions for k=2 and k=4</p></figcaption></figure>

**3SAT Problem**

What values of `x1`, `x2`, `x3`, `x4` satisfy the following boolean formula: `(x1 || x2 || !x3) && (x1 || !x1 || x1) && (x2 || x3 || x4)`?

The 3SAT Problem: Given a boolean formula, does there exist a truth value for boolean variables that obeys a set of 3-variable disjunctive constraints?

Terminology clarification:

* Constraints are True/False values.
* **Disjunctive** means separated by OR. 3SAT has a set of "clauses," each made up of 3 literals with each literal separated by an OR. For example, the first clause above is `(x1 || x2 || !x3)`.
* In the 3SAT problem we must satisfy the entire set of clauses (combine each clause with AND).

**e.g.:** `(x1 || x2 || !x3) && (x1 || !x1 || x1) && (x2 || x3 || x4)` Yes, a solution for x1, x2, x3, x4 exists Solution: x1 = true, x2 = true, x3 = true, x4 = false

**Reduction**

**CLAIM**: 3SAT reduces to Independent Set

* Recall this means we claim we can solve 3SAT by using the Independent Set algorithm!

**PROOF**: To prove the reduction, we need to argue that we can:

1. Preprocess a given 3SAT problem
2. Solve it with Independent Set
3. Postprocess the output of part 2 into a solution to the original 3SAT problem.

Let's do it!

***Preprocess a given 3SAT problem*** Given an instance X of 3SAT, preprocess it into a graph G:

1. For each clause in X, create 3 vertices in a triangle
2. Add an edge between each literal and its negation\\

<figure><img src="https://github.com/Berkeley-CS61B/fa25-gitbook/blob/main/.gitbook/assets/image%20(27).png" alt=""><figcaption></figcaption></figure>

***Solve with Independent Sets*** On graph G, find an independent set of *size = number of clauses in 3SAT*.

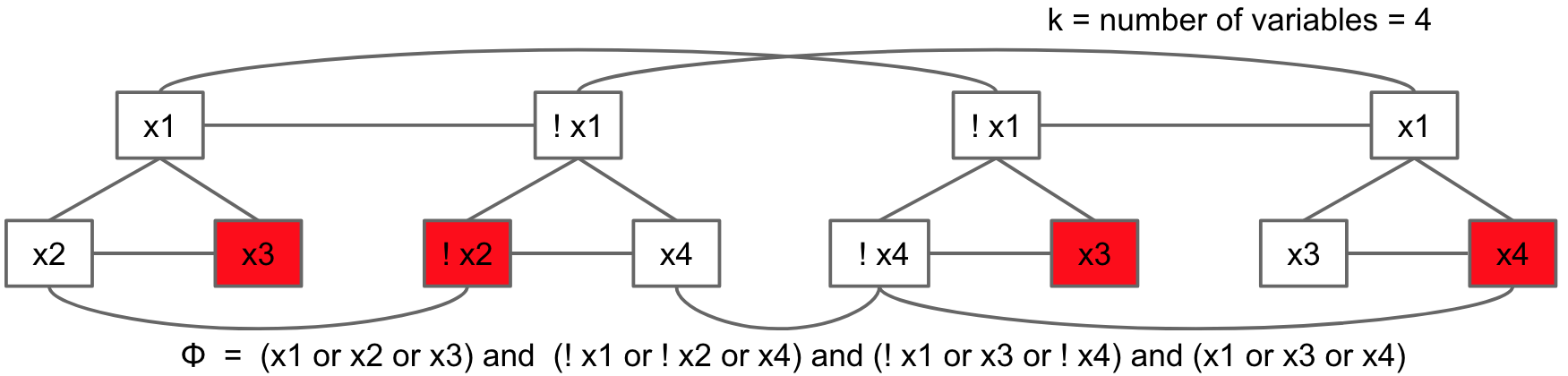

<figure><img src="https://github.com/Berkeley-CS61B/fa25-gitbook/blob/main/.gitbook/assets/image%20(114).png" alt=""><figcaption></figcaption></figure>

***Postprocess the output*** Elements in the independent set are considered "True", while elements outside are considered "False." If you can find an independent set of size = number of clauses in 3SAT, then you've successfully solved 3SAT (using independent sets whoo!).

In the above example, since `x3`, `!x2`, `x3`, `x4` were picked for the independent set, we consider each of those literals to be True and values for the rest don't matter. Therefore, `x3 = True, x2 = False, x4 = True, x1 = doesn't matter.`

**Why this works:** We'll reference the below example when going through the proof.

`(x1 || x2 || !x3) && (x1 || !x1 || x1) && (x2 || x3 || x4)`

The above 3SAT problem has 3 clauses. To form a satisfying truth assignment we must pick one literal from each clause and give it the value True. Of course, we must be consistent. If we choose `x1` to be True in the first clause, we can't choose `!x1` to be True in the third clause (x1 can't both be True and False!).

Representing a clause by a triangle forces us to pick only literal in a clause for the independent set. Repeat this for every clause and and finding an independent set of *size = number of clauses* means exactly one literal will be picked from each clause (we'll consider a picked node to be True).

We also make sure to add an edge from each literal to its negation to prevent us from choosing opposite literals (e.g. both `x1` and `!x1`) in different clauses. This may also have the effect of finding an independent set impossible - in this case, 3SAT is also not solvable.

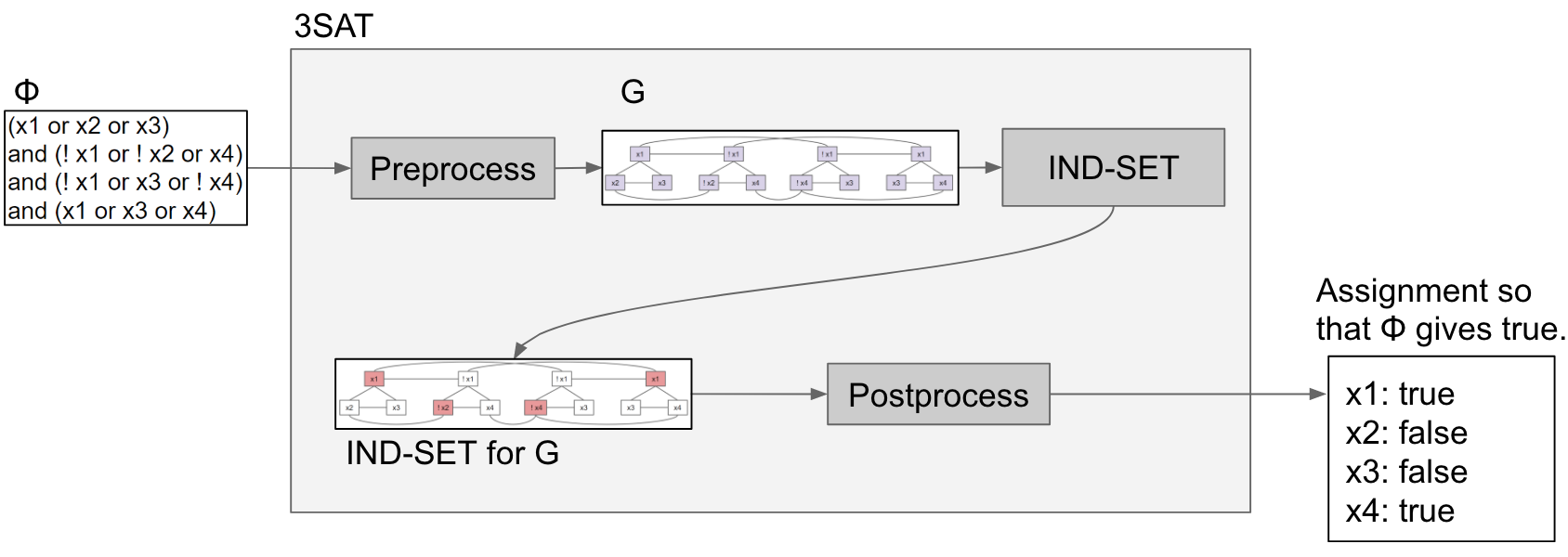

Here's a visualization of the above reduction:

<figure><img src="https://github.com/Berkeley-CS61B/fa25-gitbook/blob/main/.gitbook/assets/image%20(124).png" alt=""><figcaption></figcaption></figure>

Note that reductions are a general concept and apply to many different types of problems (they don't always involve creating graphs!)

### Reflection <a href="#reflection" id="reflection"></a>

One can argue that we have been doing reduction all throughout the course.

* Abstract Lists reduce to arrays or linked lists
* Percolation reduces to Disjoint Sets
* Maze generation reduces to \[your solution here ;)]

However these aren't exactly reductions because you aren't using a single other algorithm to solve your problem. Notably, in the earlier reduction example we used the Independent Sets algorithm as a '[black box](https://en.wikipedia.org/wiki/Black_box)' to solve 3SAT.

Perhaps a better term for what we've been accomplishing earlier in the course is *decomposition* - breaking a complex task into smaller parts. Using abstraction to make problem solving easier. This is the heart of computer science.
